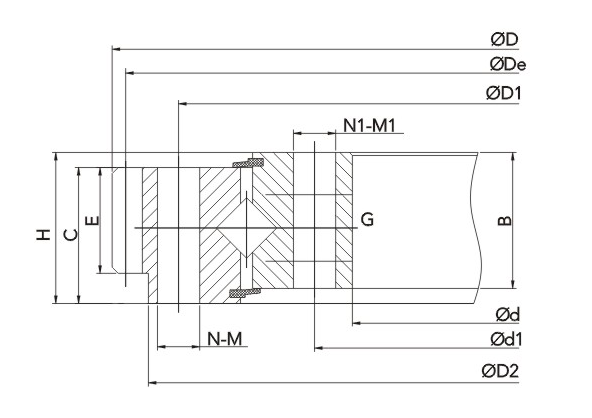

Bearing No. | Dimension(mm) | Weight (kg) | Ref. No. | |||||||||||||||
d | d1 | D | D2 | D1 | C | E | H | B | N-M | N1-M1 | De | m | Z | X | G | |||
WDA-111-0254-01 | 180 | 210 | 342 | 324 | 300 | 35 | 30 | 42 | 35 | 24-Φ13 | (24-3)-M12 | 336 | 3 | 112 | 0 | 0/2-M10*1 | 14.9 | 111.14.0254.A |
WDA-111-0308-01 | 235 | 259 | 403.5 | 380 | 358 | 47 | 39 | 55 | 45 | 24-Φ13 | (28-1)Φ13 | 396 | 4.5 | 88 | 0 | 2-ZG1/4 | 24 | 1797/235 |
WDA-111-0400-01 | 318 | 352 | 504 | 480 | 448 | 50 | 44 | 60 | 50 | 12-Φ15/M14 | 12-Φ15/M14 | 500 | 4 | 125 | -0.5 | 2-M8*1 | 46 | JW□400.12A |
WDA-111-0450-01 | 368 | 402 | 556 | 530 | 498 | 50 | 44 | 60 | 50 | 12-Φ15/M14 | 12-Φ15/M14 | 552 | 4 | 138 | -0.5 | 2-M8*1 | 52 | JW□450.12A |
WDA-111-0467-01 | 372 | 400 | 574 | 562 | 534 | 50 | 35 | 60 | 50 | 20-Φ18 | 20-Φ18 | 570 | 2 | 285 | 0 | 0/1-M8*1 | 60 | 111.20.0467.A |
WDA-111-0500-01 | 398 | 434 | 629 | 602 | 566 | 65 | 60 | 75 | 65 | 20-Φ18/M16 | 20-Φ18/M16 | 615 | 5 | 123 | 0.5 | 4-M10*1 | 80 | 111.25.500 |
WDA-111-0500-02 | 418 | 452 | 610 | 580 | 548 | 50 | 44 | 60 | 50 | 14-Φ15/M14 | 14-Φ15/M14 | 605 | 5 | 138 | -0.5 | 4-M10*1 | 58 | JW□500.12A |
WDA-111-0560-01 | 458 | 494 | 689 | 662 | 626 | 65 | 60 | 75 | 65 | 20-Φ18/M16 | 20-Φ18/M16 | 675 | 5 | 135 | 0.5 | 4-M10*1 | 90 | 111.25.560 |
WDA-111-0560-02 | 478 | 512 | 670 | 640 | 608 | 50 | 44 | 60 | 50 | 14-Φ15/M14 | 14-Φ15/M14 | 665 | 5 | 133 | -0.5 | 4-M10*1 | 66 | JW□560.12A |
WDA-111-0560-03 | 464 | 502 | 685 | 654 | 618 | 60 | 50 | 70 | 60 | 14-Φ17/M16 | 14-Φ17/M16 | 680 | 5 | 136 | -0.5 | 4-M10*1 | 79 | JW□560.14A |
WDA-111-0588-01 | 506 | 541 | 684 | 650 | 631 | 47 | 42 | 53 | 47 | 24-M12 | (24-1)-Φ14 | 672 | 6 | 112 | 0 | 1-M10*1 | 60 | 011.20.0588 A |
WDA-111-0630-01 | 528 | 564 | 772.8 | 732 | 696 | 65 | 60 | 75 | 65 | 24-Φ18/M16 | 24-Φ18/M16 | 756 | 6 | 126 | 0.5 | 4-M10*1 | 100 | 111.25.630 |
WDA-111-0630-02 | 534 | 572 | 755 | 724 | 688 | 60 | 50 | 70 | 60 | 16-Φ17/M16 | 16-Φ17/M16 | 750 | 5 | 150 | -0.5 | 4-M10*1 | 88 | JW□630.14A |
WDA-111-0677-01 | 574 | 604 | 816 | 781 | 753 | 74 | 65 | 90 | 71 | 18-Φ22 | 18-Φ22 | 792 | 6 | 132 | 1 | 3-M10*1 | 125 | 111.25.675.03K |
WDA-111-0695-01 | 545 | 611 | 920 | 867 | 805 | 122 | 90 | 132.5 | 122 | 40-Φ30 | 35-M27 | 900 | 10 | 90 | 0 | 4-G1/4 | 290 | LY-8013 |
WDA-111-0710-01 | 608 | 644 | 850.8 | 812 | 776 | 65 | 60 | 75 | 65 | 24-Φ18/M16 | 24-Φ18/M16 | 834 | 6 | 139 | 0.5 | 4-M10*1 | 110 | 111.25.710 |
WDA-111-0710-02 | 614 | 652 | 840 | 804 | 768 | 60 | 50 | 70 | 60 | 18-Φ17/M16 | 18-Φ17/M16 | 834 | 6 | 139 | -0.5 | 4-M10*1 | 101 | JW□710.14A |
WDA-111-0710-03 | 608 | 644 | 846 | 812 | 776 | 65 | 60 | 75 | 65 | 24-M16 | 24-心18 | 834 | 6 | 139 | 0 | 4-M10*1 | 118 | 111.25.710.12K |
WDA-111-0776-01 | 664 | 705 | 929.6 | 890 | 847 | 65 | 60 | 75 | 65 | 36-Φ22 | (36-1)-中22 | 920 | 8 | 115 | -0.4 | 4-M10*1 | 133 | 1797/664 |
WDA-111-0800-01 | 678 | 722 | 966.4 | 922 | 878 | 72 | 65 | 82 | 72 | 30-Φ22/M20 | 30-Φ22/M20 | 944 | 8 | 118 | 0.5 | 6-M10*1 | 170 | 111.28.800 |
WDA-111-0800-02 | 704 | 742 | 936 | 894 | 858 | 60 | 50 | 70 | 60 | 20-Φ17/M16 | 20-Φ17/M16 | 928 | 8 | 116 | -0.5 | 6-M10*1 | 114 | JW□800.14A |
WDA-111-0800-03 | 692 | 736 | 952 | 904 | 864 | 68 | 58 | 78 | 68 | 18-Φ22/M18 | 18-Φ22/M18 | 944 | 8 | 118 | -0.5 | 6-M10*1 | 147 | JW□800.18A |
WDA-111-0800-04 | 678 | 722 | 968 | 922 | 878 | 72 | 65 | 82 | 72 | 30-Φ22 | 30-Φ22 | 944 | 8 | 118 | 0.5 | 6-M10*1 | 161 | 111.28.800.12 |
WDA-111-0823-01 | 715 | 753 | 979 | 935 | 893 | 84 | 63 | 100 | 84 | 28-Φ22 | 28-Φ22 | 940 | 10 | 94 | 0.95 | 4-M10*1 | 173 | 1797/715 |
WDA-111-0900-01 | 778 | 822 | 1062.4 | 1022 | 978 | 72 | 65 | 82 | 72 | 30-Φ22/M20 | 30-Φ22/M20 | 1040 | 8 | 130 | 0.5 | 6-M10*1 | 190 | 111.28.900 |
WDA-111-0900-02 | 792 | 836 | 1060 | 1004 | 964 | 68 | 58 | 78 | 68 | 20-Φ22/M18 | 20-Φ22/M18 | 1050 | 10 | 105 | -0.5 | 6-M10*1 | 168 | JW□900.18A |
WDA-111-0987-01 | 885 | 925 | 1096 | 1056 | 1032 | 70.5 | 62.5 | 83 | 75 | 16-M16 | 16-Φ17.5 | 1080 | 8 | 135 | 0 | 3-M10*1 | 172 | E1792/885K |
WDA-111-1000-01 | 878 | 922 | 1188 | 1122 | 1078 | 72 | 65 | 82 | 72 | 36-Φ22/M20 | 36-Φ22/M20 | 1160 | 10 | 116 | 0.5 | 6-M10*1 | 210 | 111.28.1000 |
WDA-111-1000-02 | 892 | 936 | 1160 | 1104 | 1064 | 68 | 58 | 78 | 68 | 24-Φ22/M18 | 24-Φ22/M18 | 1150 | 10 | 115 | -0.5 | 6-M10*1 | 185 | JW□1000.18A |
WDA-111-1000-03 | 876 | 926 | 1170 | 1120 | 1074 | 80 | 70 | 90 | 80 | 24-Φ24/M22 | 24-Φ24M22 | 1160 | 10 | 116 | -0.5 | 6-M10*1 | 232 | JW□1000.22A |
WDA-111-1025-01 | 885 | 935 | 1180 | 1150 | 1115 | 100 | 80 | 115 | 100 | 16-Φ18 | 16-Φ18 | 1170 | 5 | 234 | 0 | 4-M8*1 | 330 | 1797/885G |
WDA-111-1117-01 | 984 | 1035 | 1289.5 | 1242 | 1198 | 97.5 | 82.5 | 107.5 | 98 | 60-Φ25 | 58-Φ25 | 1250 | 10 | 125 | 1 | 1-M10*1 | 327 | 111.32.1117.A |
WDA-111-1120-01 | 998 | 1042 | 1298 | 1242 | 1198 | 72 | 65 | 82 | 72 | 36-Φ22M20 | 36-Φ22/M20 | 1270 | 10 | 127 | 0.5 | 6-M10*1 | 230 | 111.28.1120 |
WDA-111-1120-02 | 996 | 1046 | 1308 | 1240 | 1194 | 80 | 70 | 90 | 80 | 28-Φ24/M22 | 28-Φ24/M22 | 1296 | 12 | 108 | -0.5 | 6-M10*1 | 275 | JW□1120.22A |
WDA-111-1250-01 | 1110 | 1163 | 1449.6 | 1390 | 1337 | 81 | 75 | 91 | 81 | 40-Φ26/M24 | 40-Φ26/M24 | 1416 | 12 | 118 | 0.5 | 5-M10*1 | 350 | 111.32.1250 |
WDA-111-1250-02 | 1126 | 1176 | 1440 | 1370 | 1324 | 80 | 70 | 90 | 80 | 32-Φ24/M22 | 32-Φ24M22 | 1428 | 12 | 119 | -0.5 | 5-M10*1 | 309 | JW□1250.22A |
WDA-111-1254-01 | 1100 | 1160 | 1452 | 1415 | 1345 | 100 | 84 | 115 | 100 | 18-Φ21 | 24-Φ21 | 1440 | 6 | 240 | 0 | 4-M8*1 | 502 | 1797/1100G |
