READ MOREStock code: 920002

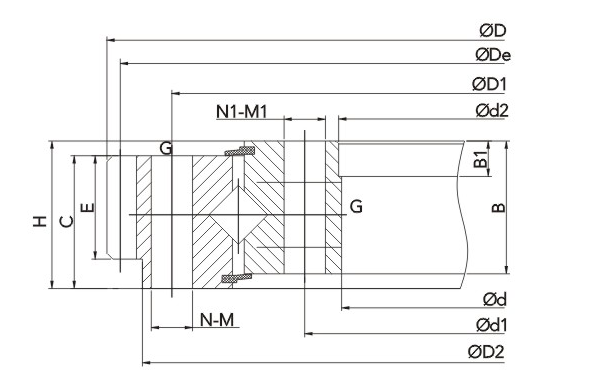

Bearing No. | Dimension(mm) | Weight (kg) | Ref. No. | |||||||||||||||||
d | d1 | d2 | D | D2 | D1 | C | E | H | B | B1 | N-M | N1-M1 | De | m | Z | k.m | G | |||
WDB-111-0307-01 | 234 | 259 | 235H10 | 403.5 | 380 f9 | 358 | 47 | 39 | 55 | 45 | 10 | 24-Φ13 | 28-Φ13 | 396 | 4.5 | 88 | 0.75 | 2/0-M8*1 | 26 | 06-0307-00 |
WDB-111-0307-02 | 234 | 259 | 235H11 | 403.5 | 379 f9 | 358 | 45 | 39 | 55 | 45 | 10 | 24-Φ13 | (28-1)-Φ13 | 396 | 4.5 | 88 | 0.75 | 2/2-M10*1 | 23.5 | 111.20.0307.A |
WDB-111-0308-01 | 234 | 259 | 235H10 | 403.5 | 380h11 | 358 | 47 | 39 | 55 | 45 | 10 | 12-Φ13 | 14-M16 | 396 | 4.5 | 88 | 0.75 | 2/2-M10*1 | 24.9 | 111.20.0307.B |
WDB-111-0400-01 | 305 | 336 | 306 H9 | 535 | 495 f9 | 466 | 63 | 55 | 75 | 63 | 8 | 18-Φ20 | (18-1)-Φ20 | 520 | 8 | 65 | 0.5 | 0/3-M10*1 | 60 | 06-0400-00 |
WDB-111-0474-01 | 378 | 410 | 384 H9 | 589 | 565 f9 | 540 | 60 | 50 | 75 | 58 | 10 | 36-Φ16 | (36-1)-Φ16 | 580 | 5 | 116 | 0.5 | 2/0-M10*1 | 65 | 111.18.0474.A |
WDB-111-0474-02 | 378 | 410 | 384 H10 | 589.5 | 565 h10 | 540 | 60 | 50 | 75 | 58 | 10 | 36-Φ16 | (36-1)-Φ16 | 580.5 | 4.5 | 129 | 0 | 2/2-M10*1 | 65 | 111.25.0474.A |
WDB-111-0475-01 | 383 | 410 | 384 H9 | 589 | 565 f9 | 540 | 60 | 50 | 75 | 63 | 10 | 36-Φ16 | (36-1)-Φ16 | 580 | 5 | 116 | 0.5 | 2/0-M10*1 | 62 | 06-0475-22 |
WDB-111-0475-02 | 378 | 410 | 384 H9 | 589.5 | 565 f9 | 540 | 60 | 50 | 75 | 58 | 10 | 36-Φ16 | (36-1)-Φ16 | 580.5 | 4.5 | 129 | 0 | 2/2-M10*1 | 64 | 111.18.0475.A |
WDB-111-0508-01 | 390 | 432 | 392 H9 | 654 | 610 f9 | 582 | 73 | 60 | 85 | 73 | 10 | 30-Φ22 | (30-1)-Φ22 | 640 | 8 | 80 | 1 | 0/3-M10*1 | 100 | 06-0508-00 |
WDB-111-0574-01 | 479 | 508 | 480 H9 | 700 | 670 | 640 | 64 | 60 | 77 | 64 | 10 | 36-Φ18 | (36-1)-Φ18 | 690 | 6 | 114 | 0/2-M10*1 | 85 | 06-0574-09 | |
WDB-111-0574-02 | 477 | 508 | 480 H9 | 695 | 670 f9 | 640 | 64 | 42 | 77 | 64 | 10 | 36-Φ18 | (36-1)-Φ18 | 685 | 5 | 137 | 0 | 2/2-M10*1 | 79 | 111.20.0574.A |
WDB-111-0675-01 | 573 | 604 | 574 H9 | 816 | 781h10 | 753 | 73 | 65 | 90 | 70 | 10 | 18-Φ22 | 18-Φ22 | 805.1 | 6 | 132 | 0.55 | 4/3-M10*1 | 128 | 06-0675-00 |
WDB-111-0823-01 | 717 | 753 | 718 H9 | 979 | 932 | 893 | 79 | 65 | 100 | 82 | 10 | 36-Φ22 | (36-1)-Φ22 | 962 | 10 | 94 | 1.5 | 4/4-M10*1 | 176 | 06-0823-18 |
WDB-111-0980-01 | 869 | 910 | 870 H9 | 1144 | 1090 | 1050 | 79 | 67 | 100 | 84 | 10 | 36-Φ22 | 36-Φ22 | 1110 | 10 | 111 | 1 | 4/4-M10*1 | 225 | 06-0980-09 |
WDB-111-1117-01 | 984 | 1035 | 985 H9 | 1289.5 | 1240f9 | 1198 | 90 | 78 | 114 | 94 | 10 | 40-Φ22 | 40-Φ22 | 1250 | 10 | 125 | 0.25 | 4/4-M10*1 | 325 | 111.32.1117.B |
WDB-111-1250-01 | 1084 | 1150 | 1085H9 | 1476 | 1415f9 | 1350 | 91 | 77 | 110 | 100 | 10 | 40-Φ26 | 40-Φ26 | 1457.2 | 10 | 144 | 0.6 | 0/4-M10*1 | 496 | 06-1250-21 |
