READ MOREStock code: 920002

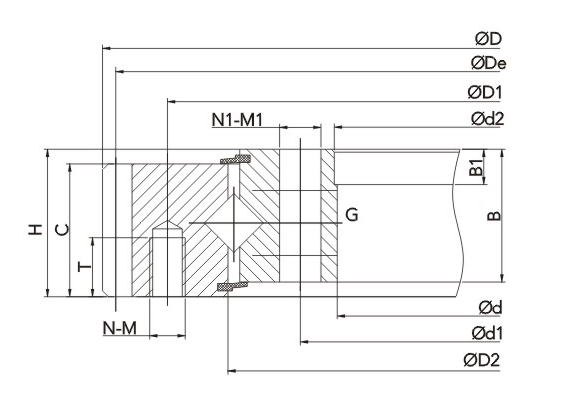

Bearing No. | Dimension (mm) | Weight (kg) | Ref.No. | |||||||||||||||||
d | d1 | d2 | D | D2 | D1 | C | T | H | B | B1 | N-M | N1-M1 | De | m | z | k.m | G | |||
WDC-111-0414-01 | 342 | 368 | 344 H9 | 503.3 | 415.5 | 455 | 45 | 20 | 56 | 45 | 10 | 20-M12 | 24-Φ14 | 495 | 5 | 99 | 0.85 | 2-M8*1 | 31 | SEG 505 20 01 CC LM |
WDC-111-0414-02 | 342 | 368 | 344 H8 | 503.3 | 417 H8 | 455 | 44.5 | 20 | 56 | 44.5 | 10 | 20-M12 | 24-Φ14 | 495 | 5 | 99 | 0.85 | 2-M8*1 | 32 | ER1.14.0414.200-1STPN |
WDC-111-0544-01 | 472 | 498 | 474 H9 | 640.6 | 545.5 | 585 | 45 | 20 | 56 | 45 | 10 | 28-M12 | 32-Φ14 | 630 | 6 | 105 | 0.7 | 2-M8*1 | 43 | SEG 650 20 01 CC LM |
WDC-111-0544-02 | 472 | 498 | 474 H8 | 640.3 | 547 H8 | 585 | 44.5 | 20 | 56 | 44.5 | 10 | 28-M12 | 32-Φ14 | 630 | 6 | 105 | 0.85 | 2-M8*4 | 43 | ER1.14.0544.200-1STPN |
WDC-111-0644-01 | 572 | 598 | 574 H9 | 742.3 | 645.5 | 685 | 45 | 20 | 56 | 45 | 10 | 32-M12 | 36-Φ14 | 732 | 6 | 122 | 0.85 | 2-M8*1 | 52 | SEG 750 20 01 CC LM |
WDC-111-0644-02 | 572 | 598 | 574 H8 | 742.3 | 647 H8 | 685 | 44.5 | 20 | 56 | 44.5 | 10 | 32-M12 | 36-Φ14 | 732 | 6 | 122 | 0.85 | 2-M8*1 | 52 | ER1.14.0644.200-1STPN |
WDC-111-0744-01 | 672 | 698 | 674 H9 | 838.1 | 745.5 | 785 | 45 | 20 | 56 | 45 | 10 | 36-M12 | 40-Φ14 | 828 | 6 | 138 | 0.95 | 2-M8*1 | 59 | SEG 850 20 01 CC LM |
WDC-111-0744-02 | 672 | 698 | 674 H8 | 838.1 | 747 H8 | 785 | 45 | 20 | 56 | 45 | 10 | 36-M12 | 40-Φ14 | 828 | 6 | 138 | 0.95 | 2-M8*1 | 58 | ER1.14.0744.200-1STPN |
WDC-111-0844-01 | 772 | 798 | 774 H9 | 950.1 | 845.5 | 885 | 45 | 20 | 56 | 45 | 10 | 36-M12 | 40-Φ14 | 936 | 8 | 117 | 0.95 | 2-M8*1 | 71 | SEG 950 20 01 CC LM |
WDC-111-0844-02 | 772 | 798 | 774 H8 | 950.1 | 847 H8 | 885 | 44.5 | 20 | 56 | 44.5 | 10 | 36-M12 | 40-Φ14 | 936 | 8 | 117 | 0.95 | 2-M8*1 | 71 | ER1.14.0844.200-1STPN |
WDC-111-0944-01 | 872 | 898 | 874 H9 | 1046.1 | 945.5 | 985 | 45 | 20 | 56 | 45 | 10 | 40-M12 | 44-Φ14 | 1032 | 8 | 129 | 0.95 | 2-M8*1 | 77 | SEG 1050 20 01 CC LM |
WDC-111-0944-02 | 872 | 898 | 874 H8 | 1046.1 | 947 H8 | 985 | 44.5 | 20 | 56 | 44.5 | 10 | 40-M12 | 44-Φ14 | 1032 | 8 | 129 | 0.95 | 2-M8*1 | 77 | ER1.14.0944.200-1STPN |
WDC-111-1094-01 | 1022 | 1048 | 1024 H9 | 1198.1 | 1095.5 | 1135 | 45 | 20 | 56 | 45 | 10 | 44-M12 | 48-Φ14 | 1184 | 8 | 148 | 0.95 | 2-M8*1 | 91 | SEG 1150 20 01 CC LM |
WDC-111-1094-02 | 1022 | 1048 | 1024 H8 | 1198.1 | 1097 H8 | 1135 | 44.5 | 20 | 56 | 44.5 | 10 | 44-M12 | 48-Φ14 | 1184 | 8 | 148 | 0.95 | 2-M8*1 | 90 | ER1.14.1094.200-1STPN |
