Wholesale OEM/ODM WDA-113-xx-x Crossed roller slewing ring internal gear

Home / Product / Slewing Bearings / WDA-113-xx-x Crossed roller slewing ring internal gear

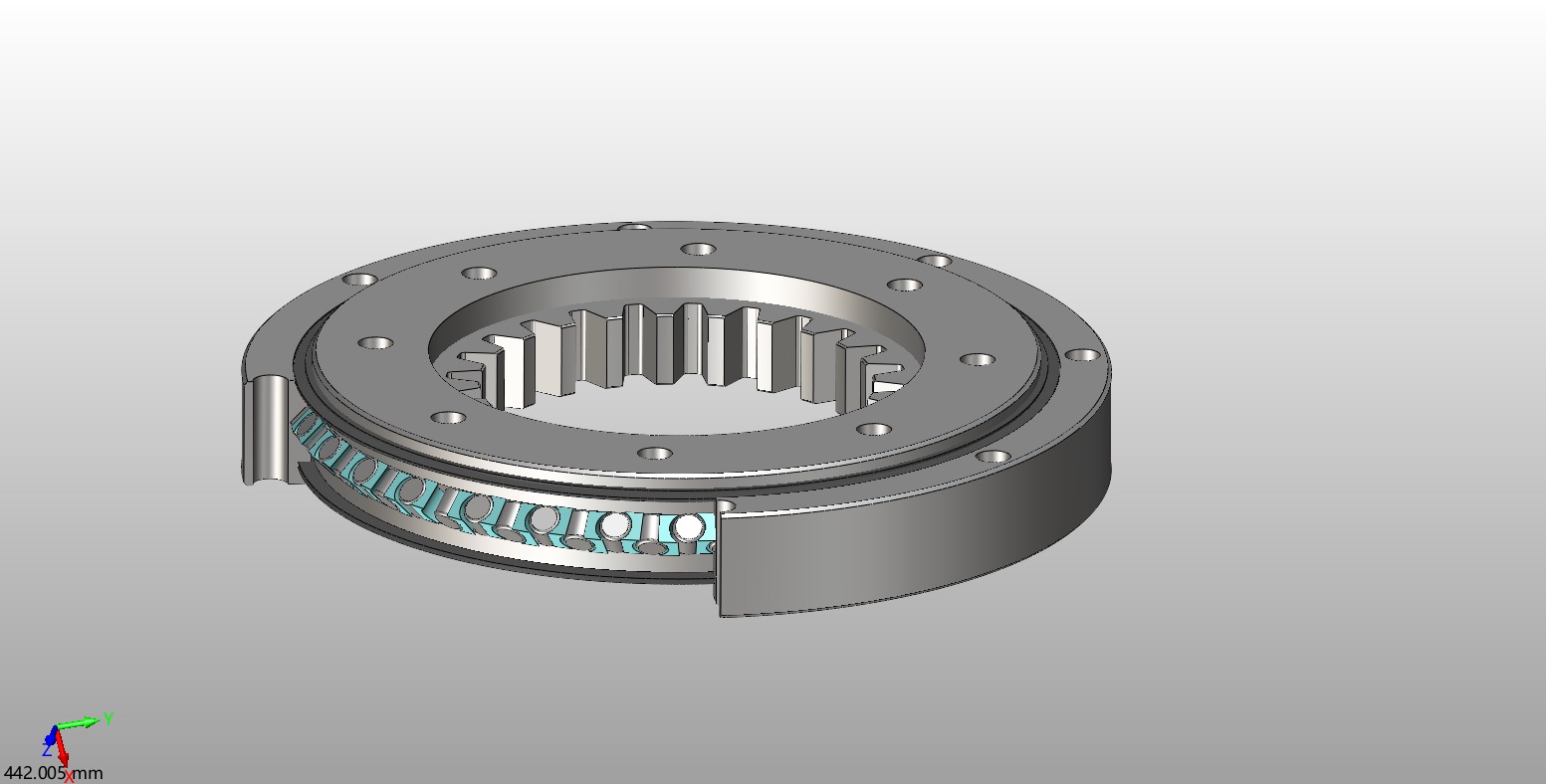

WDA-113-xx-x Crossed roller slewing ring internal gear

Tips for speed of slewing bearing:
The slewing bearing can rotate intermittently or continuously. The limit speed of the slewing bearing in normal cases is as follows:
Structure type of bearing Lubrication type Limit speed (n.Dm)
Crossed roller type Standard lubricating grease 24000-3500
Ball type Standard lubricating grease 40000-6500
Bal with cage Lubricating grease or oil 70000-13000

For example: For the slewing bearing (011.40.1000), the diameter 'D'of raceway center is 1000mm, standard lubricating grease is appropriate, the limit speed is in. Dm- 65000, and the limit rotating speed is n- 65000/1000- -65 (rpm/min). If the rotating speed is too high, the service life of slewing bearing may be reduced or damaged.
+86-513-80311111 / +86-15050632597 [email protected]
contact us
PREV: WDC-111-xx-x Crossed roller slewing ring external gear NEXT:WDB-113-xx-x Crossed roller slewing ring internal gear
  • Parameter
  • Dimensions
  • Get A Free Quote

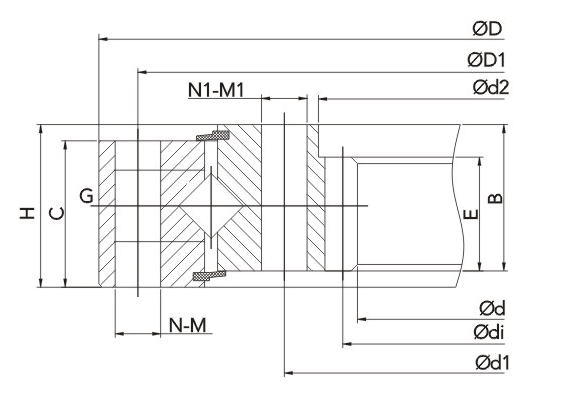

Bearing No. Dimension Weight (kg) Ref. No.
d d2 d1 D D1 C H B E N-M N1-M1 d m Z X G
WDA-113-0400-01 296 320 352 482 448 50 60 50 44 12-Φ15/M14 12-Φ15M14 300 4 75 0.5 2-M8*1 43 JN□400.12A
WDA-113-0450-01 344 370 402 532 498 50 60 50 44 12-Φ15/M14 12-Φ15M14 348 4 87 0.5 2-M8*1 51 JN□450.12A
WDA-113-0500-01 367 398 434 602 566 65 75 65 60 20-Φ18/M16 20-Φ18M16 370 5 74 0.5 4-M10*1 80 113.25.500
WDA-113-0500-01 390 420 452 582 548 50 60 50 44 14-Φ15/M14 14-Φ15M14 395 5 79 0.5 4-M10*1 57 JN□500.12A
WDA-113-0560-01 427 458 494 662 626 65 75 65 60 20-Φ18/M16 20-Φ18/M16 430 5 86 0.5 4-M10*1 90 113.25.560
WDA-113-0560-02 450 480 512 642 608 50 60 50 44 14-Φ15/M14 14-Φ15M14 455 5 91 0.5 4-M10*1 65 JN□560.12A
WDA-113-0560-03 435 468 502 656 618 60 70 60 50 14-Φ17/M16 14-Φ17M16 440 5 88 0.5 4-M10*1 77 JN□560.14A
WDA-113-0630-01 494.4 528 564 732 696 65 75 65 60 24-Φ18/M16 24-Φ18M16 498 6 83 0.5 4-M10*1 100 113.25.630
WDA-113-0630-02 505 538 572 726 688 60 70 60 50 16-Φ17/M16 16-Φ17M16 510 5 102 0.5 4-M10*1 86 JN□630.14A
WDA-113-0710-01 572.4 608 644 812 776 65 75 65 60 24-Φ18/M16 24-Φ18M16 576 6 96 0.5 4-M10*1 110 113.25.710
WDA-113-0710-02 582 618 652 806 768 60 70 60 50 18-Φ17/M16 18-Φ17M16 588 6 98 0.5 4-M10*1 97 JN□710.14A
WDA-113-0800-01 635.2 678 722 922 878 72 82 72 65 30-Φ22/M20 30-Φ22/M20 640 8 80 0.5 6-M10*1 170 113.28.800
WDA-113-0800-02 664 708 742 896 858 60 70 60 50 20-Φ17/M16 20-Φ17/M16 672 8 84 0.5 6-M10*1 111 JN□800.14A
WDA-113-0800-03 648 694 736 908 864 68 78 68 58 18-Φ22/M18 18-Φ22/M18 656 8 82 0.5 6-M10*1 142 JN□800.18A
WDA-113-0802-01 658 695 735 920 870 76 90 86 65 30-Φ18 30-Φ18 672 7 96 0.5 3-Φ10 175 2797/695G2
WDA-113-0880-01 717.6 760 800 1000 956 82 95 80 70 24-Φ20 24-Φ20 728 8 91 0.35 4-M10*1 206 2797/760G2
WDA-113-0900-01 739.2 778 822 1022 978 72 82 72 65 30-Φ22/M20 30-Φ22/M20 744 8 93 0.5 6-M10*1 190 113.28.900
WDA-113-0900-02 740 794 836 1008 964 68 78 68 58 20-Φ22/M18 20-Φ22M18 750 10 75 0.5 6-M10*1 162 JN□900.18A
WDA-113-1000-01 824 878 922 1122 1078 72 82 72 65 36-Φ22/M20 36-Φ22/M20 830 10 83 0.5 6-M10*1 210 113.28.1000
WDA-113-1000-02 840 894 936 1108 1064 68 78 68 58 24-Φ22/M18 24-Φ22/M18 850 10 85 0.5 6-M10*1 179 JN□1000.18A
WDA-113-1000-03 830 880 926 1124 1074 80 90 80 70 24-Φ24/M22 24-Φ24M22 840 10 84 0.5 6-M10*1 227 JN□1000.22A
WDA-113-1020-01 829.6 875 930 1170 1120 82 95 80 70 24-Φ22 24-Φ22 840 8 105 0.35 4-M10*1 297 2797/875G2
WDA-113-1090-01 908.8 955 100 1200 1160 76 90 76 72 36-Φ18 18-Φ18 920 8 115 0.3 4-M8*1 245 2797/955G2
WDA-113-1090-02 962 1010 1041 1200 1160 76 90 80 72 36-Φ22 20-M20 970 10 97 0.6 2-M8*1 199 2797/1010GK
WDA-113-1025-01 828.8 870 920 1180 1125 100 115 100 90 18-Φ26 18-Φ26 840 8 105 0.3 2-M8*1 374 2797/870G2
WDA-113-1120-01 944 998 1042 1242 1198 72 82 72 65 36-Φ22/M20 36-Φ22/M20 950 10 95 0.5 6-M10*1 230 113.28.1120
WDA-113-1120-02 936 1000 1046 1244 1194 80 90 80 70 28-Φ24/M22 28-Φ24/M22 948 12 79 0.5 6-M10*1 262 JN□1120.22A
WDA-113-1250-01 48.8 1110 1163 1390 1337 81 91 81 75 40-Φ26/M24 40-Φ26/M24 1056 12 88 0.5 6-M10*1 350 113.32.1250
WDA-113-1250-02 1068 1130 1176 1374 1324 80 90 80 70 32-Φ24/M22 32-Φ24/M22 1080 12 90 0.5 6-M10*1 290 JN□1250.22A
