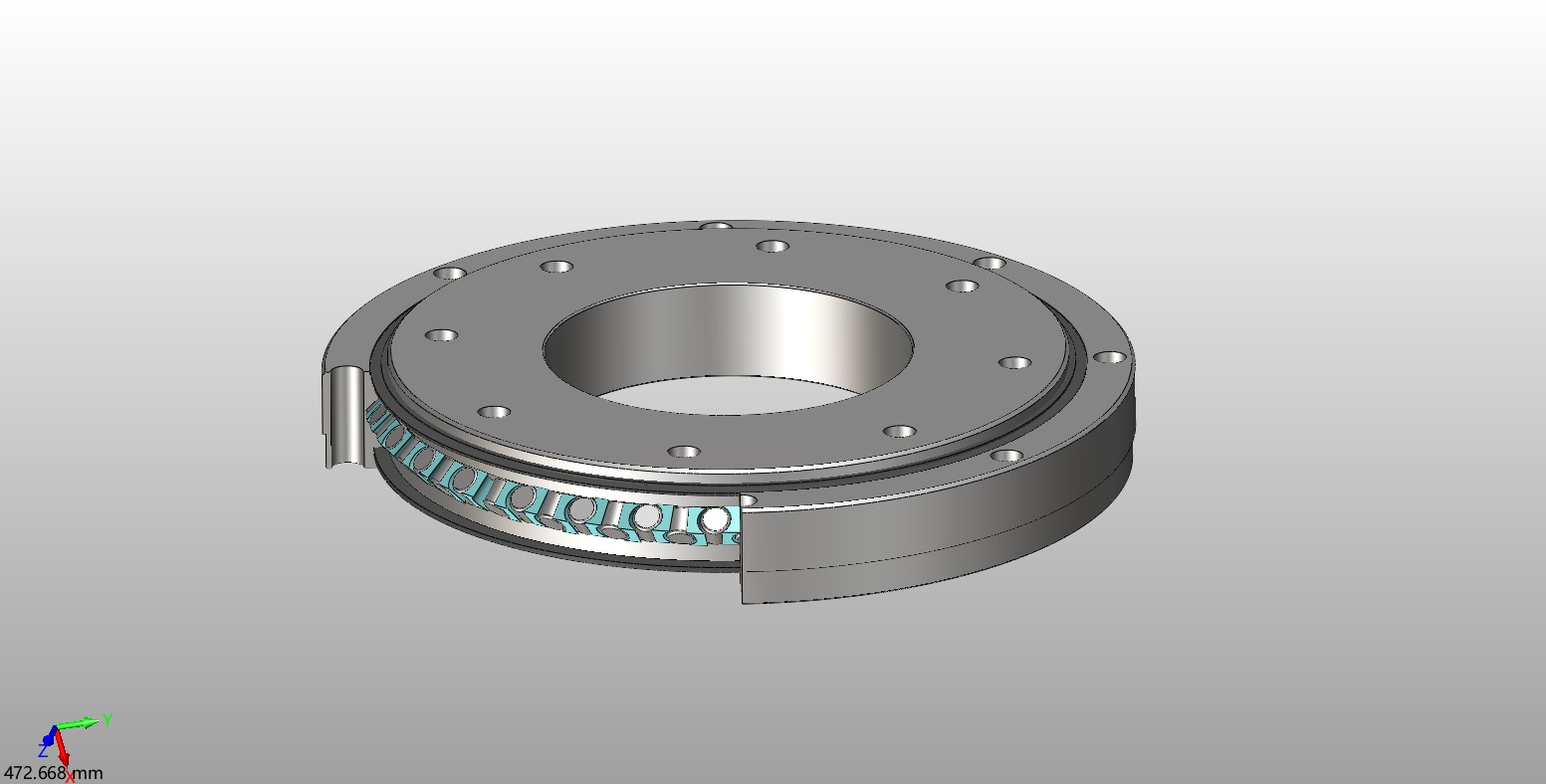

WDC-113-xx-x Crossed roller slewing ring internal gear

Tips for speed of slewing bearing:
The slewing bearing can rotate intermittently or continuously. The limit speed of the slewing bearing in normal cases is as follows:
Structure type of bearing Lubrication type Limit speed (n.Dm)
Crossed roller type Standard lubricating grease 24000-3500
Ball type Standard lubricating grease 40000-6500
Bal with cage Lubricating grease or oil 70000-13000

For example: For the slewing bearing (011.40.1000), the diameter 'D'of raceway center is 1000mm, standard lubricating grease is appropriate, the limit speed is in. Dm- 65000, and the limit rotating speed is n- 65000/1000- -65 (rpm/min). If the rotating speed is too high, the service life of slewing bearing may be reduced or damaged.
+86-513-80311111 / +86-15050632597 [email protected]
contact us
PREV: WDB-113-xx-x Crossed roller slewing ring internal gear NEXT:No next article
  • Parameter
  • Dimensions
  • Get A Free Quote

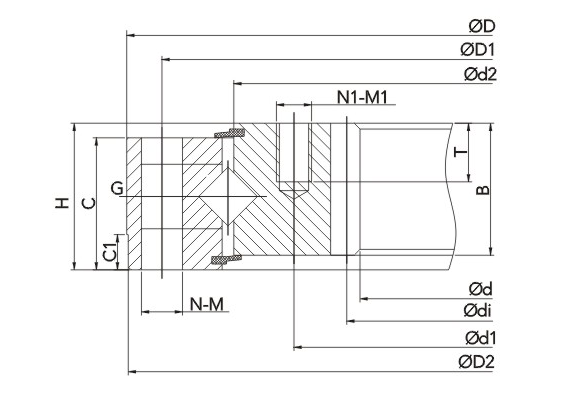

Bearing No. Dimension(mm) Weight(kg) Ref. No.
d d2 d1 D D2 D1 C C1 H B T N-M N1-M1 di m z k.m G
WDC-113-0414-01 325 412.5 375 486 484 f9 460 46 10 56 46 20 24-Φ14 24-M12 335 5 67 0 2-M8*1 31 SIG 486 20 01 CC LM
WDC-113-0414-02 325 411 h8 375 486 484 h8 460 44.5 10 56 44.5 20 24-Φ14 24-M12 335 5 67 0 4-M8*1 31 ZR1.14.0414.200-1SPTN
WDC-113-0544-01 444 542.5 505 616 614 f9 590 46 10 56 46 20 32-Φ14 32-M12 456 6 76 0 2-M8*1 42 SIG 616 20 01 CC LM
WDC-113-0544-02 444 541 h8 505 616 614 hs 590 44.5 10 56 44.5 20 32-Φ14 32-M12 456 6 76 0 4-M8*1 42 ZR1.14.0544.200-1SPTN
WDC-113-0644-01 546 642.5 605 716 714 f9 690 46 10 56 46 20 36-Φ14 36-M12 558 6 93 0 2-M8*1 50 SIG 716 20 01 CC LM
WDC-113-0644-02 546 641 h8 605 716 714 h8 690 44.5 10 56 44.5 20 36-Φ14 36-M12 558 6 93 0 4-M8*1 50 ZR1.14.0644.200-1SPTN
WDC-113-0744-01 648 742.5 705 816 814 f9 790 46 10 56 46 20 40-Φ14 40-M12 660 6 110 0 2-M8*1 58 SIG 816 20 01 CC LM
WDC-113-0744-02 648 741 h8 705 816 814 h8 790 44.5 10 56 44.5 20 40-Φ14 40-M12 660 6 110 0 4-M8*1 58 ZR1.14.0744.200-1SPTN
WDC-113-0844-01 736 842.5 805 916 914 f9 890 46 10 56 46 20 40-Φ14 40-M12 752 8 94 0 2-M8*1 69 SIG 916 20 01 CC LM
WDC-113-0844-02 736 841 h8 805 916 914 h8 890 44.5 10 56 44.5 20 40-Φ14 40-M12 752 8 94 0 4-M8*1 69 ZR1.14.0844.200-1SPTN
WDC-113-0944-01 840 942.5 905 1016 1014 f9 990 46 10 56 46 20 44-Φ14 44-M12 856 8 107 0 2-M8*1 76 SIG 1016 20 01 CC LM
WDC-113-0944-02 840 941 h8 905 1016 1014 h8 990 44.5 10 56 44.5 20 44-Φ14 44-M12 856 8 107 0 4-M8*1 76 ZR1.14.0944.200-1SPTN
WDC-113-1094-01 984 1092.5 1055 1166 1164 f9 1140 46 10 56 46 20 48-Φ14 48-M12 1000 8 125 0 2-M8*1 91 SIG 1116 20 01 CC LM
WDC-113-1094-02 984 1091 h8 1055 1166 1164 h8 1140 44 5 10 56 44.5 20 48-Φ14 48-M12 1000 8 125 0 4-M8*1 91 ZR1.14.1094.200-1SPTN
