Wholesale OEM/ODM WDB-113-xx-x Crossed roller slewing ring internal gear

Home / Product / Slewing Bearings / WDB-113-xx-x Crossed roller slewing ring internal gear

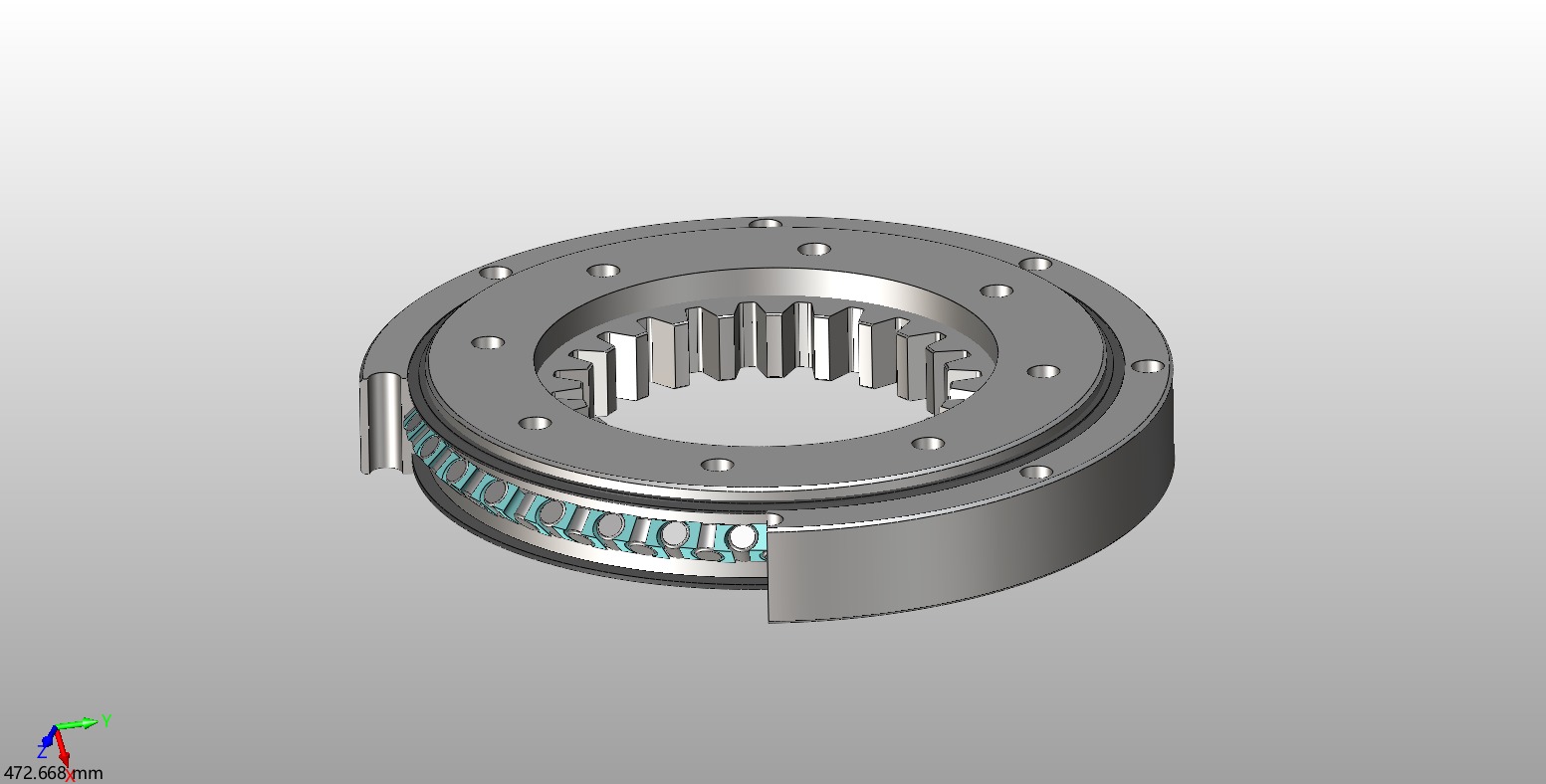

WDB-113-xx-x Crossed roller slewing ring internal gear

Tips for speed of slewing bearing:
The slewing bearing can rotate intermittently or continuously. The limit speed of the slewing bearing in normal cases is as follows:
Structure type of bearing Lubrication type Limit speed (n.Dm)
Crossed roller type Standard lubricating grease 24000-3500
Ball type Standard lubricating grease 40000-6500
Bal with cage Lubricating grease or oil 70000-13000

For example: For the slewing bearing (011.40.1000), the diameter 'D'of raceway center is 1000mm, standard lubricating grease is appropriate, the limit speed is in. Dm- 65000, and the limit rotating speed is n- 65000/1000- -65 (rpm/min). If the rotating speed is too high, the service life of slewing bearing may be reduced or damaged.
+86-513-80311111 / +86-15050632597 [email protected]
contact us
PREV: WDA-113-xx-x Crossed roller slewing ring internal gear NEXT:WDC-113-xx-x Crossed roller slewing ring internal gear
  • Parameter
  • Dimensions
  • Get A Free Quote

Bearing No. Dimension(mm) Weight (kg) Ref. No.
d d2 d1 D D2 D1 C C1 H B E N-M N1-M1 di m Z k.m G
WDB-113-0380-01 291 313 H9 335 451 450 h9 425 45 10 55 45 40 24-Φ13.5 24-Φ13.5 300 5 60 0.5 2-M10*1 28 07-0380-01
WDB-113-0489-01 385 418H9 440 562 560 f9 538 50 10 60 50 43 30-Φ13.5 30-Φ13.5 396 6 66 0.5 2-M10*1 43 07-0489-11
WDB-113-0573-01 457 485H9 517 665 660 f9 630 50 10 60 50 45 28-Φ17.5 28-Φ17.5 468 6 77 0.5 2-M10*1 63 07-0573-00
WDB-113-0673-01 541 575H9 610 771 770 f9 736 60 10 70 60 55 32-Φ17.5 32-Φ17.5 552 6 91 0.5 4-M10*1 96 07-0673-00
WDB-113-0770-01 634 670H9 707 871 870 f9 833 60 10 70 60 55 36-Φ17.5 36-Φ17.5 648 8 80 1 3-M10*1 113 07-0770-00
WDB-113-0849-01 706 742H9 784 960 958 f9 914 65 10 75 65 60 30-Φ22 30-Φ22 720 8 89 1 3-M10*1 144 07-0849-00
WDB-113-0885-01 786 820H9 850 975 970 f9 944 67 10 82 70 62 36-Φ17.5 36-M16 800 8 100 1 3-M10*1 119 07-0885-01
WDB-113-1075-01 961 1010 H9 1040 1175 1165 f9 1134 75 10 90 72 62 36-M16 36-M16 980 10 98 0.5 4-M10*1 181 07-1075-01
WDB-113-1140-01 979 / 1068 1251 1250 f9 1212 75 10 91 75 75 40-Φ22 40-Φ22 996.4 10 99 1.3 4-M10*1 239 07-1140-13
WDB-113-1304-01 1143 / 1228 1431 1430 f9 1380 82 10 97 85 85 48-Φ22 48-Φ22 1160.6 10 115 1.2 4-M10*1 326 07-1304-04
